High Potential Extruded sacrificial anodes for cathodic protection ( CP ) systems
1.Product information
• Item name: Magnesium sacrificial ribbon anode
Magnesium anode extruded ribbon is a flexible anode materials , used in high resistivity water or soil.
Due to the ribbon's greater surface area to weight ration, magnesium ribbon can provide higher current outputs when compared to other magnesium anodes.
Chemical composition:
| Designation | Al | Zn | Mn | Fe | Ni | Cu | Si | Mg |
| Mg-Mn | <0.010 | - | 0.5-1.30 | <0.03 | <0.001 | <0.02 | - | balance |
| Mg | <0.010 | <0.010 | <0.030 | <0.002 | <0.001 | <0.001 | <0.010 | >99.95 |
| AZ31 | 5.30-6.70 | 0.7-1.3 | 0.20 max | 0.005 max | 0.01 max | 0.001 max | 0.05 max | |
2.Application of sacrificial anode magnesium
Magnesium anode is characterized by small density, big theory electric capacity, low potential negative polarization rate and large driving voltage for iron and steel (> 0.6 V).
Magnesium sacrificial anode is suitable for the protection of metal components in soil and water, where the electrical resistivity is higher.
Our magnesium anode is mainly used for anticorrosion of buried pipelines, onshore platforms, huge boilers and steel structures.
Printing plate with etching/ Stamping 3c auto parts mg battery shell/ decorative sheet construction /military industry/, batter anode for sea water /, instrument and meter shell
3.Anode detail image
We can surely produce anode as per your drawing !
Pls contact us for more details !
Jane Hu(Ms)
China Hunan High Broad New Material Co., Ltd.
70 Chezhan North Road,Changsha, China 410100
Tel:+86-731-85717705
Fax:+86-731-85716569
Mobile/Whatsapp: +86-139-7515-2932
Wechat:13975152932
4. Specification
| Name | Magnesium Ribbon |
| Grade | CHEMICAL COMPOSITION (%) |
| Impurity, ≤ | Total Impurity |
| Mg | Fe | Si | Ni | Cu | Al | Cl | Mn | 0.05 |
| Mg 99.95 | 99.95 | 0.004 | 0.01 | 0.001 | 0.002 | 0.01 | 0.003 | 0.01 |

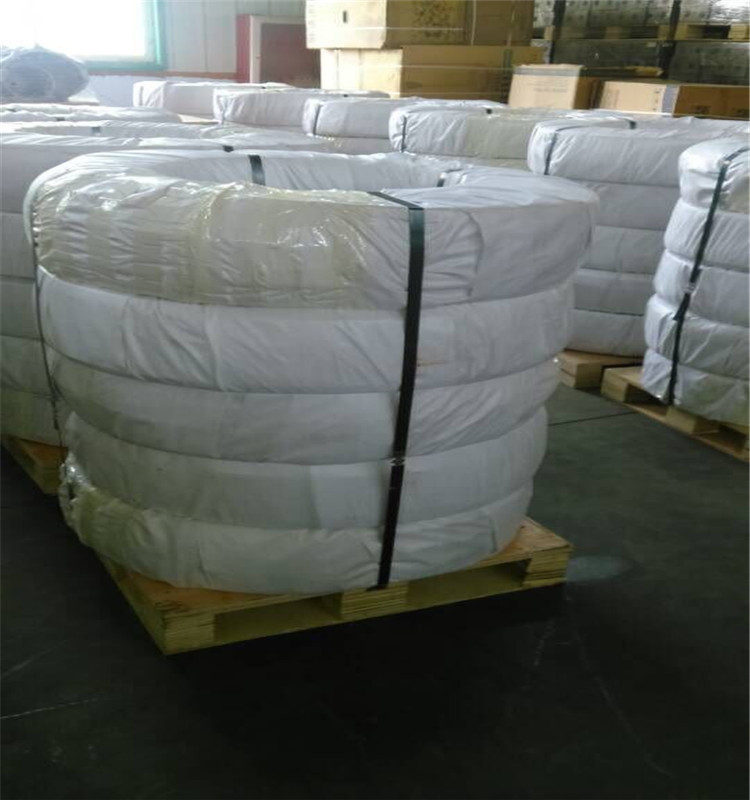

| Remark | Diameter Size: 4mm or 6mm Delivery: prompt shipment Packing: ON MAGNESIUM PALLET OR WOODEN PALLET |
The mechanical properties at room temperature:
| Material Status | Tensile direction | Yield Strength(MPa) | Tensile(MPa) | Elongation % |
| Hot-rolled state | Rolling direction | 260 | 280 | 9.5 |
| Hot-rolled state | Horizontal | 274 | 300 | 8.5 |
| Annealed | Rolling direction | 198 | 254 | 20 |
| Annealed | Horizontal | 186 | 250 | 21.5
|
5.magnesium anode
Usage:
(1)Corrosion protection magnesium anode
(2)protect water heater, water containers of steel structure magnesium anode
(3)protect the gas pipeline in-home service polarization high resistance electrolytes (soil and water in the steel structure)
Company Principle:
Our Belief: Continuous Innovation.
Our Spirit: Sincerity, Unity, Dedicated, Hardworking.
Our Mission: Provide most advanced products & most professional technical solution.
6.Contact us for more information:
Jane Hu(Ms)
China Hunan High Broad New Material Co., Ltd.
70 Chezhan North Road,Changsha, China 410100
Tel:+86-731-85717705
Fax:+86-731-85716569
Mobile/Whatsapp: +86-139-7515-2932
Wechat:13975152932
