Zinc Anodes manufactured by HighBroad meet or exceed the industry standards. Zinc Anodes manufactured to the latest Mil-Spec also are covered by the ASTM-418-95 Type I Alloy. Other types of Zinc Anode Alloys manufactured would meet or exceed the latest ASTM-418-95 Type II Alloy.
| Type | Zn | Fe | Pb | Cu | Al | Cd |
| ASTM B418 Type 1 MIL-A-18001-K | Remainder | 0.005% (max) | 0.006% (max) | 0.005% (max) | 0.1-0.5% | 0.025-0.070% |
| ASTM B418 Type 2 | Remainder | 0.0014% (max) | 0.003% (max) | 0.002% (max) | 0.005% (max) | 0.003% (max) |
Electrochemical Performance
| Type | Open-Circuit -V(vs Cu/CuSO4) | Generating Current (A.h)/kg(vs Cu/CuSO4) |
| ZINC MIL-A-18001-K | 1.05 | >=780 |
Zinc Soil Anodes are used where soil conditions require the use of Zinc Anodes such as saline mud below 120 F (50 C). These anodes would protect objects underground such a storage tanks, containers, and buried structures.
Our anodes are used in recreational , commercial and millitary vessels.
Placed on hulls, propeller shafts, rudders, trimtabs, outboard engines,stem drives, and in coding system of most inboard engines to protect metal parts from galvanic corrosion.

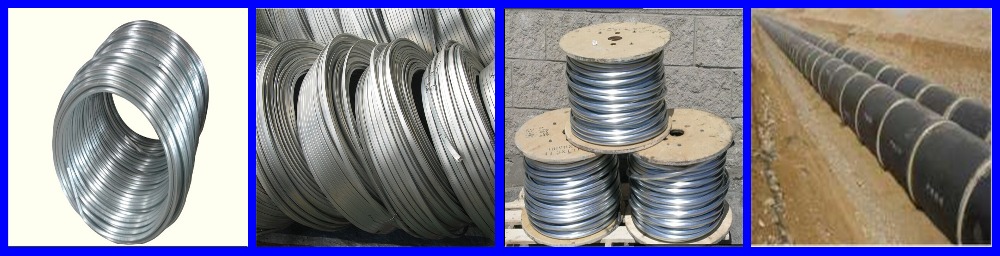

Extruded Zinc Ribbon Anode
Zinc Ribbon Anode are used in a variety of applications. They provide a very simple ,cost effective, maintenance-free method of corrosion control for buried or immersed metals such as iron, steel, aluminium ,copper, etc. It is especially useful for unattended applications. It can also be used as a temporary system prior to the installation of an impressed current system and as a method of providing AC mitigation.
FAQ:
Q. When we we choose to use Zinc anodes ?
A. Exterior of underground or underwater pipe
Interior of pipe handling corrosive waters and effluents
Lead sheathed electric cable in ducts
Other metal-sheathed electric cable in underwater or underground locations
Copper concentric neutrals of URD cable
Corrosion control and/or grounding of induced AC on underground pipe
Annulus space between outer steel casing and inner pipe of deep wells
Interior bottoms of oil storage tanks
Foamed annulus space of insulated steel pipe underground or underwater
Double bottom areas of ship ballast tanks
Bottom areas of cargo/ballast tanks of petroleum carriers
Product Tags:
|
|

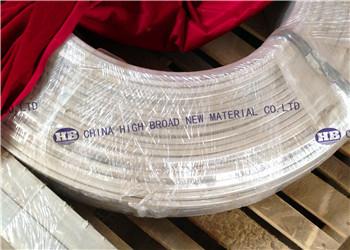

Standard Type Sacrificial Zinc Anodes Images
|
