Product Description:
Aluminum anodes are dependable at shielding metal structures in marine and industrial settings. They are frequently employed in ports, on boats, and ships, serving as sacrificial anodes to deter corrosion on hulls, propellers, and other underwater parts. Thanks to their high electrical capacity, they effectively safeguard sizable surfaces while remaining lightweight and simple to put in place due to their low density.
These aluminum anodes are well-suited for various marine uses. They defend structures and equipment in ports, act as boat anodes to prevent corrosion on smaller vessels, and operate as anodes for boats, suitable for recreational as well as commercial ships. When it comes to larger vessels and offshore platforms, aluminum anodes deliver sturdy corrosion defense. Furthermore, these anodes present a cost-efficient and eco-friendly option for enduring corrosion protection in marine environments.
Features:

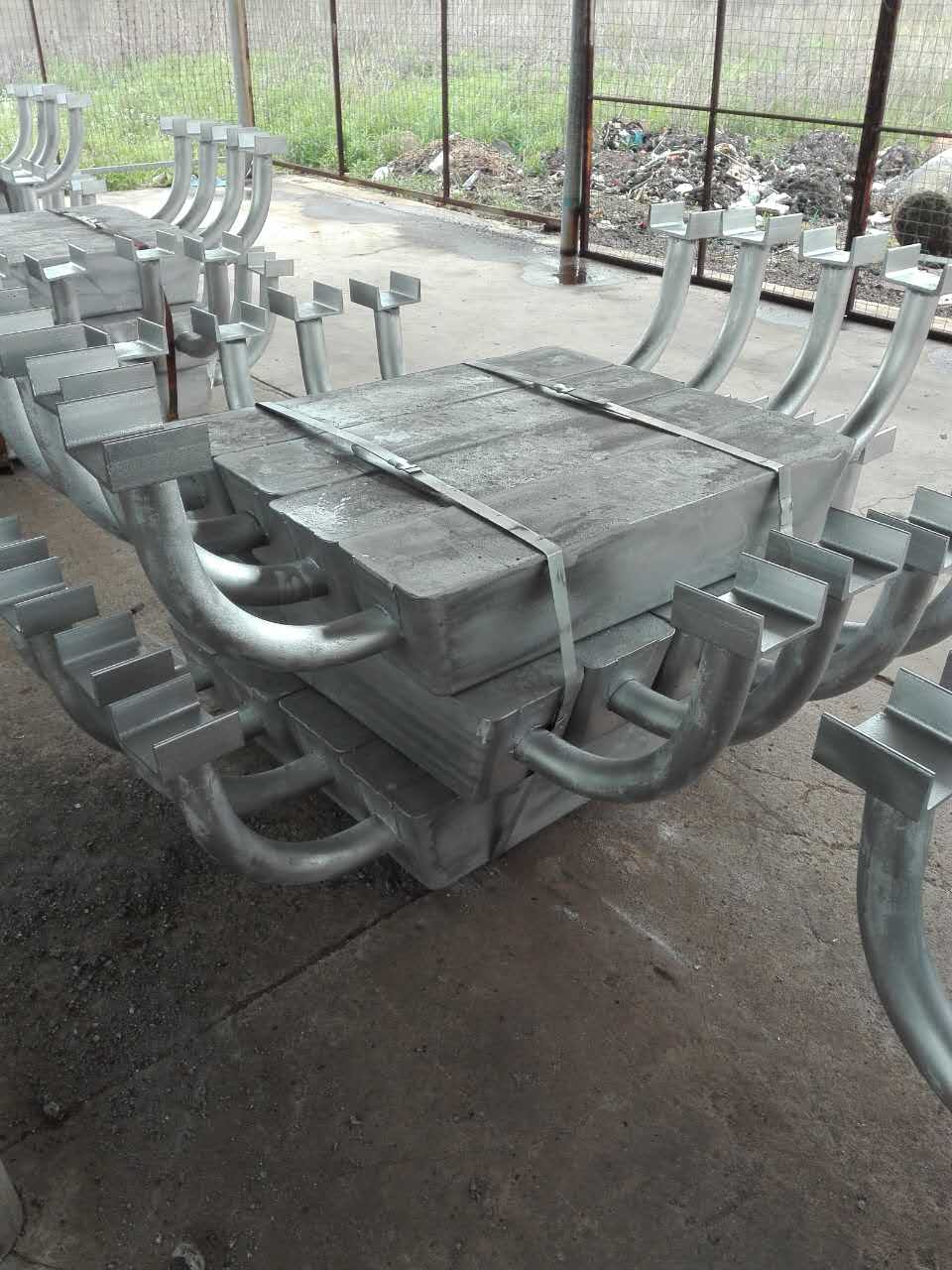

In off-shore cathodic protection, aluminum anode is widely preferred for its lightweight properties, ease of installation, and ability to be cast into different sizes. The stand-off anode protrudes from the installed surface, ensuring that the anode material does not directly touch the surface to be protected. This design allows the stand-off anode to be used effectively throughout its lifespan, with an anode utilization factor that can reach up to 85 to 90%.
Technical Parameters:
Aluminum Anodes Specifications
Casted in low-iron, high-purity alloys, our aluminum anodes are designed as per the standard of NACE, DNV, ISO.
GALVALUM III (Al-Zn-In-Si)
| Element | Content (%) |
| Zinc (Zn) | 2.000 ~ 6.000 |
| Indium (In) | 0.010 ~ 0.020 |
| Silicon (Si) | 0.080 ~ 0.200 |
| Iron (Fe) | 0.130 max. |
| Copper (Cu) | 0.006 max. |
| Cadmium (Cd) | — |
| Other Impurities | 0.100 max. |
| Aluminum (Al) | Remainder |
DNV-RP-B401-2011 (Al-Zn-In)
| Element | Content (%) |
| Zinc (Zn) | 2.500 ~ 5.750 |
| Indium (In) | 0.015 ~ 0.040 |
| Silicon (Si) | 0.120 max. |
| Iron (Fe) | 0.090 max. |
| Copper (Cu) | 0.003 max. |
| Cadmium (Cd) | 0.002 max. |
| Other Impurities | 0.100 max. |
| Aluminum (Al) | Remainder |
GS EP COR 201 (Al-Zn-In)
| Element | Content (%) |
| Zinc (Zn) | 4.750 ~ 5.750 |
| Indium (In) | 0.015 ~ 0.020 |
| Silicon (Si) | 0.060 ~ 0.120 |
| Iron (Fe) | 0.120 max. |
| Copper (Cu) | 0.003 max. |
| Cadmium (Cd) | 0.002 max. |
| Other Impurities | 0.100 max. |
| Aluminum (Al) | Remainder |
Applications:
Our aluminium anodes are specifically designed to protect steel structures from corrosion in both seawater and brackish water environments. Despite having a lower voltage rate compared to magnesium anodes, aluminium anodes exhibit a significantly slower consumption rate . This characteristic makes them ideal for various marine applications such as offshore drilling platforms, wind turbine foundations, and harbour facilities.
Customization:
Product Customization Services for Aluminum Anode:
- Brand Name: High Broad Anode
- Model Number: Al anodes
- Place of Origin: China
- Certification: ISO / ASTM / ROHS / REACH
- Minimum Order Quantity: 100 kgs
- Price: according to quantity
- Packaging Details: on pallet
- Delivery Time: 14 days
- Payment Terms: T/T, Paypal
- Supply Ability: 1000 mt/month
- Weight: Varies Depending On Size
- Core: Bend
- Availability: Readily Available In The Market
- Hex Steel Caps: Customized
- Al Anode Type: Aluminum Ballast Tank Anode
These customization services cater to the needs of Anode Prevention System, Sacrificial Anode System, and Sacrificial Anode System.
Support and Services:
Our Product Technical Support and Services for the Aluminum Anode include:
- Assistance with product installation and usage instructions
- Troubleshooting and resolving technical issues
- Providing guidance on proper maintenance and care of the product
- Offering recommendations for optimal performance and longevity
Packing and Shipping:
Product Packaging:
This Aluminum Anode product is securely packaged in a sturdy cardboard box to prevent any damage during transit. The anode is wrapped in protective packaging material to ensure it arrives in perfect condition.
Shipping:
We offer fast and reliable shipping for our Aluminum Anode product. Orders are typically processed within 1-2 business days and shipped via a reputable carrier such as UPS or FedEx. Customers will receive a tracking number to monitor the delivery status of their order.
FAQ:
Q: What is the brand name of the Aluminum Anode product?
A: The brand name is High Broad Anode.
Q: What is the model number of the Aluminum Anode product?
A: The model number is Al anodes.
Q: Where is the Aluminum Anode product manufactured?
A: The product originates from China.
Q: What certifications does the Aluminum Anode product have?
A: The product is certified with ISO, ASTM, ROHS, and REACH.
Q: What is the minimum order quantity for the Aluminum Anode product?
A: The minimum order quantity is 100 kgs.
