Product Description:
Magnesium anodes are used to achieve cathodic protection of underground pipelines and other underground structures such as tank bottoms, vessels, valves and fire hydrants. Suitable for use in soils, slurries and fresh water.
Often used for temporary cathodic protection of newly installed structures.
Standard: ASTM G-97
| Chemical compositions of cast magnesium anode (%) |
| Element | High potential | AZ63B | AZ63C | AZ63D |
| Al | <0.01 | 5.30-6.70 | 5.30-6.70 | 5.0-7.0 |
| Zn | --- | 2.50-3.50 | 2.50-3.50 | 2.0-4.0 |
| Mn | 0.5-1.30 | 0.15-0.70 | 0.15-0.07 | 0.15-0.70 |
| Si (max) | 0.05 | 0.10 | 0.30 | 0.30 |
| Cu (max) | 0.02 | 0.02 | 0.05 | 0.10 |
| Ni (max) | 0.001 | 0.002 | 0.003 | 0.003 |
| Fe (max) | 0.03 | 0.005 | 0.005 | 0.005 |
| Others each | 0.005 | --- | --- | --- |
| Others total | 0.30 | 0.30 | 0.30 | 0.30 |
| Mg | Balance | Balance | Balance | Balance |
Specificantion of “S”shaped Mg sacrificed anodes
| Model | Weight Kg (LB) | Specification of anodes Inch (mm) |
| A | B | C |
| 3S3 | 1.4(3) | 3(76.2) | 3(76.2) | 4.5(114.3) |
| 5S3 | 2.3(5) | 3(76.2) | 3(76.2) | 7.5(190.5) |
| 9S2 | 4.1(9) | 2(50.8) | 2(50.8) | 27(685.8) |
| 17S2 | 7.7(17) | 2(50.8) | 2(50.8) | 51(1295.4) |
| 17S3 | 7.7(17) | 3(76.2) | 3(76.2) | 25.5(647.7) |
| 20S2 | 9.1(20) | 2(50.8) | 2(50.8) | 60(1524.0) |
| 32S3 | 14.5(32) | 3(76.2) | 3(76.2) | 45(1143.0) |
| 32S5 | 14.5(32) | 5(127.0) | 5(127.0) | 21(533.4) |
| 40S3 | 18.1(40) | 3(76.2) | 3(76.2) | 60(1524.0) |
| 48S5 | 21.8(48) | 5(127.0) | 5(127.0) | 31(787.4) |
| 60S4 | 27.2(60) | 4(101.6) | 4(101.6) | 60(1524.0) |
| 9S3 | 4.1(9) | 3(76.2) | 3(76.2) | 13.5(342.9) |
Specificantion of “D”shaped Mg sacrificed anodes
| Model | Weight Kg (LB) | Specification of anodes Inch (mm) |
| A | B | C |
| 9D2 | 4.082(9) | 2 3/4(69.9) | 3(76.2) | 21 5/8(549.3) |
| 14D2 | 6.350(14) | 2 3/4(69.9) | 3(76.2) | 33 1/2(850.9) |
| 20D2 | 9.072(20) | 2 3/4(69.9) | 3(76.2) | 47 3/4(1212.9) |
| 9D3 | 4.08(9) | 3 1/2(88.9) | 3 3/4(95.3) | 13 7/8(352.4) |
| 17D3 | 7.711(17) | 3 1/2(88.9) | 3 3/4(95.3) | 25 1/4(641.4) |
| 32D5 | 14.515(32) | 5 1/2(139.7) | 5 3/4(146.1) | 19 7/8(504.8) |
| 48D5 | 21.772(48) | 5 1/2(139.7) | 5 3/4(146.1) | 30 1/8(765.2) |
| 1.5Kg | 1.5(3.5) | 3 3/20(80.0) | 2 3/4(70.0) | 7 1/2(190.0) |
| 2.5Kg | 2.5(5.5) | 3 3/20(80.0) | 2 3/4(70.0) | 11 4/5(300.0) |
| Model | Open-circuit voltage (-v) | Close-circuit voltage (-v) | actual capacitance (A.H/G) | Current efficiency (%) |
| Mg anode with low potential AZ63 | 1.50-1.55 | 1.45-1.5 | ≥1.105 | ≥50 |
| Mg anode with high potential Mg-Mn | 1.70-1.75 | 1.57-1.62 | ≥1.100 | ≥50 |
Applications:

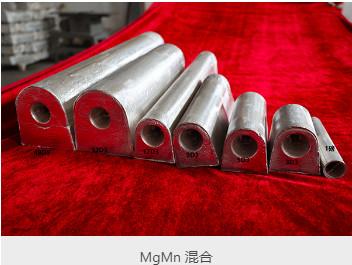

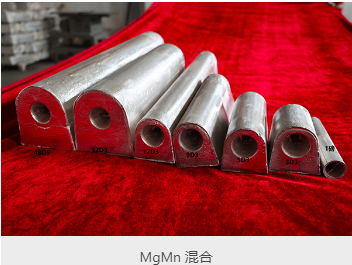

The Magnesium Anodes are available in D Shape, S Shape, and C Shape Bar which can be customized according to the specific requirements of the customer. The Surface of the product is smooth which helps in easy installation. The life of the product can be customized according to the specific requirements of the customer.
These Magnesium Anodes are widely used for corrosion protection in oil pipelines, gas pipelines, water supply systems, marine structures, underground metal structures, and many other industries. It is available in two different weights, 7.7 Kgs, and 14.5 Kgs soil anodes which make it a versatile product for different applications.
The packaging of the product is done on pallets which ensures the safety of the product during transportation. The delivery time of the product is 14 days and the payment terms are T/T and L/C. The minimum order quantity for the product is 100 kgs and the price is discussed with the customer.
The Magnesium Manganese alloy used in the product makes it a high-quality corrosion-resistant product. The supply ability of the product is 1000 mt per month which makes it a reliable source for large-scale industries.
Overall, HB Magnesium Anode HP is a premium quality product that offers reliable corrosion protection for various industries. Its customizable life, shape, and weight make it a versatile product for different applications. Its smooth surface, easy installation, and reliable supply ability make it a top choice for corrosion protection.
Customization:
We can do it according to your drawing or request.
Support and Services:
Our Magnesium Anode product comes with top-notch technical support and services to ensure optimal performance and longevity. Our team of experts is available to answer any technical questions or concerns you may have regarding the installation, maintenance, or operation of the product. We also offer a range of services, including installation assistance, performance monitoring, and maintenance recommendations to help you get the most out of your Magnesium Anode. Contact us today to learn more about our technical support and services for the Magnesium Anode.
Packing and Shipping:
The Magnesium Anode product will be packaged in a sturdy cardboard box with proper cushioning to ensure safe delivery. The anode will be securely placed in a plastic bag to prevent any damage or corrosion during transportation.
Shipping:
The Magnesium Anode product will be shipped via standard ground shipping. Shipping times may vary depending on the destination. Customers will be provided with a tracking number once the product has been shipped.
FAQ:
Q: What is the brand name of the Magnesium Anode?
A: The brand name of the Magnesium Anode is HB (High Broad).
Q: What is the model number of the Magnesium Anode?
A: The model number of the Magnesium Anode is Anode HP.
Q: Where is the Magnesium Anode manufactured?
A: The Magnesium Anode is manufactured in China.
Q: What certifications does the Magnesium Anode have?
A: The Magnesium Anode is certified with ROHS, REACH, and ISO.
Q: What is the minimum order quantity for the Magnesium Anode?
A: The minimum order quantity for the Magnesium Anode is 100 kgs.
Q: What is the price of the Magnesium Anode?
A: The price of the Magnesium Anode can be discussed.
Q: What are the packaging details for the Magnesium Anode?
A: The Magnesium Anode is packaged on pallets.
Q: What is the delivery time for the Magnesium Anode?
A: The delivery time for the Magnesium Anode is 14 days.
Q: What are the payment terms for the Magnesium Anode?
A: The payment terms for the Magnesium Anode are T/T and L/C.
Q: What is the supply ability of the Magnesium Anode?
A: The supply ability of the Magnesium Anode is 1000 mt per month.
